The two types of people that go to Cisco Live.

with 3 comments


With Cisco Live US ( #CLUS ) 2015 slowly approaching, It’s becoming a popular topic and the question comes up, “Do you think it’s worth going to CLUS?”

Like most questions I answer I start with “Well, it kind of depends what you are going for”, CLUS is a big event and there is plenty to do. So it is safe to assume you (more than likely) will not be able to do everything you want. I’ve spoken to a lot of people who are planning on going to Cisco Live and you can almost classify everyone into one of two categories:

  • The technical person – Someone who loads up their schedule with the most in-depth technical sessions that interest them, and may also hang around the testing center to take advantage of the free exam and/or the 50% discount on exams during the conference. The Cisco Store is also more than likely on your list of places to hit, loading on Cisco merchandise or Cisco Press with discounted prices is totally worth checking. You might run through the World of Solutions to get some vendor swag and see what’s going on the industry from some of the bigger vendors and see what new products are hitting the market. More than likely you will be watching the clock getting ready to run to your next session.
    • Some other items on your list might be:
      • Meet the engineer – Is there some technology you really want discuss in depth or just discuss one-on-one with a Cisco engineer, well here is you chance!
      • TAC Walk-In Clinic – Got some issue that been bugging you or some a burning technical question, well go chat with some TAC engineers they are always more than willing to help.
  • The social person – Your first stop is the Social Hub, what better way to start CLUS then with all you Twitter friends at the Tweet-Up. The certification lounge is a great pit stop for chatting about your certification studies, but the Social Hub is where it’s at keeping track of the #CLUS hashtag and you can even watch the keynotes from the kozy couches. By meeting so many people you quickly know where to hang out at night when the conference ends, there’s usually a party every night you just need to know where to find it!
    • The World of Solutions is your next favorite place, what’s more fun than a scavenger hunt the #CLUS scavenger hunt!
    • When the conference is over with at the end of the day you don’t care because you already know where everyone is heading.

Or… you can grab a few coffees in the morning and then a few espresso shots in WoS and try to do everything!! Like I do, 4-days of Cisco goodness, got to make the most of it!

No matter what reason you have for attending Cisco Live, you are destined to have a good time. Who’s looking forward to this years CLUS backpack and this years CAE Hat?

If you have not registered, make sure you do! You can register here!

*There are way than two types of people that attend CLUS, but for the sake of comic relief lets say there are only two.


CLUS 2013 Tweet-up


CLUS 2014 Tweet-Up


CLUS 2014 -Cisco Live Photo.


Written by Stephen J. Occhiogrosso

February 24, 2015 at 10:00 AM

Networking Field Day – Afterwards – Cisco ACI

with 3 comments

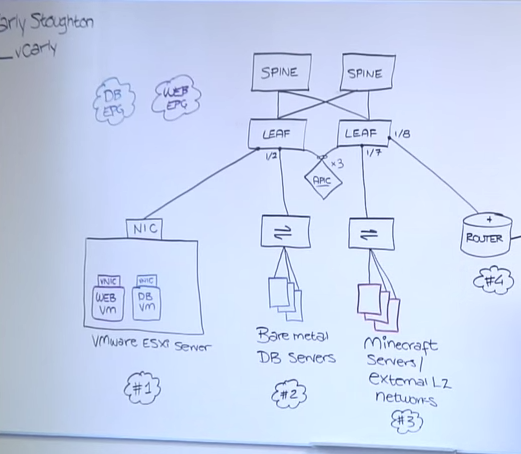

I first need to give a shout out to @_vCarly and her amazing skills at the white board, I only wish my white boarding design were half clean as that! If @_vCarly were to a host a white boarding session at CLUS this year I would most likely attend!


I suppose we should discuss the actual presentation now! Like probably many of you I have heard an awful lot about Cisco SDN and Controllers (Cisco ACI) however until now it has all been theory and hear-say. I can finally say I’ve seen the GUI and got to hear a deep dive of how this new architecture is supposed to work. Now, that I have seen it I am believer there is a lot of potential here and allow us to re-think the way we consider designing Data Center networks and here is why I think that:

  1. Building around the application, with this new design model we are almost forcing the application designer & server administrations to tell how their servers/applications work and communicate on the network. I have a spent a lot of time with AppDev’s going over what their application does and what else the App communicates in order to troubleshoot an issue. This approach removes much of the hassle without ever seeing the hassle. Future engineers might not know ‘the struggle’ of discovering an application via packet analysis and bridge calls.
  2. Deployment Orchestration – by specifically calling out the application and the service chaining from the get go, deploying a new application is much more streamlined and simplified in the long run when internal process are stream-lined. Eliminating the time-consuming need to:
    1. Login to multiple networking devices to configure SVI’s & Trunks
    2. Login to multiple firewalls creating the appropriate rules.
    3. Login to Load balancers and creating devices pools, health monitoring, virtual servers, and so forth.
  3. Troubleshooting and flow monitoring – Out of the box this box will be watching flow statistics. So tracking traffic statistics can easily pin-point packet loss and drops. Which may mean bad news some of the simpler NMS solutions out there unless they start looking beyond the typical Up/Down & Interface utilization mantra.
    1. Something that was brought up on Twitter post-event was the support for SNMP, which is a great question since SNMP was never mentioned (in any of the SDN-related presentations for that matter).

Now, with all that said and the fact Cisco ACI builds a Data Center around EPG’s (End Point Groups) I really look forward to this new design architecture. It’s probably going to be a bit more tedious up front since some applications will need to be called out specifically instead of going “O, that is a web server. Place it on this VLAN” but in the long run this will streamline many different parts of data center operations.

Links to the Networking Field Day 9 presentations below:

Understanding the Cisco ACI Policy Model

Cisco ACI Overview w/ Soni Jiandani & Joe Onisick

How Device Connect to the Fabric

Cisco ACI Demo w/ Carly Stoughton

Written by Stephen J. Occhiogrosso

February 23, 2015 at 9:00 AM

Cisco’s EoS announcement for the ASA CX Modules and Cisco Prime Security Manager

with one comment

How about that, 2 blogs posts in one day! However this is going to a real quick post so it shouldn’t count but hey there is a picture so it’s legit! I caught wind of this announcement on twitter late last night and just needed to put a small post about it. Mainly because some time ago I posted about the EoS announcement for the traditional IPS Modules, and I ended that blog post with the following question:

CX Question


Well, that question has been answered. On 2/16/2015 Cisco announced the EoS / EoL timeline for the ASA-CX Modules as well the Cisco Prime Security Manager which was the management tool the CX-Modules. Along with same basic management functionality for the Cisco ASA Firewalls themselves.

Looks like the Official EoS date is 8/17/2015

With a final hardware support date of 8/31/202

You can view the full EoX timeline for the ASA-CX Module and PRSM here. The time line is too large for me grab in a single screenshot so I figure a direct link is the next best thing.

Written by Stephen J. Occhiogrosso

February 20, 2015 at 10:00 AM

Networking Field Day – Afterwards – New SolarWinds features.

with one comment

SolarWinds Logo


One thing I really liked about SolarWinds was the fact they were the first vendor to start with a white board discussion. Being a network engineer I am a big fan of drawing boxes and lines on a white board. To me it is a more engaging way to have a presentation compared pre-built PowerPoint slides with fancy sounds and motions.

SolarWinds initially started with a architecture overview of their product, involving each of their modules and how these modules are incorporated into the entire eco-system. If you are not familiar with this I highly recommend starting with that session.

Now to talk about the new announcements SolarWinds and the features that will be included in their newest releases.

1. Wireless Heat Map – I’ll admit (and this won’t be a surprise to any of my usual readers) I have been following this feature on the Thwack Forums through the different beta’s for some time now and it’s really had my attention since the initial announcement. I was very curious to see how this would match against other solutions such as MSE Controllers and other site survey tools. While this feature might not be as fully featured as the previous mentioned solutions, this is great addition to SolarWinds arsenal and will definitely be useful for smaller shops that run WLANs. However, also keep in mind this is the first implementation of the functionality and if Solarwinds has proven anything over the years they take an idea and run with it!

2. QoE – Quality of Experience. This in my opinion is one of the greatest new features SolarWinds has added in a long time. A trend I have been seeing over the years is the fact network monitoring needs to go beyond the typical Up/Down & Interface utilization model especially with the adapting trend of 10G, 40G, & 100G infrastructure (and there are some multi-GB architecture getting thrown around nowadays to). It’s time to start monitoring closer at the application level and that is what SolarWinds is starting to do.

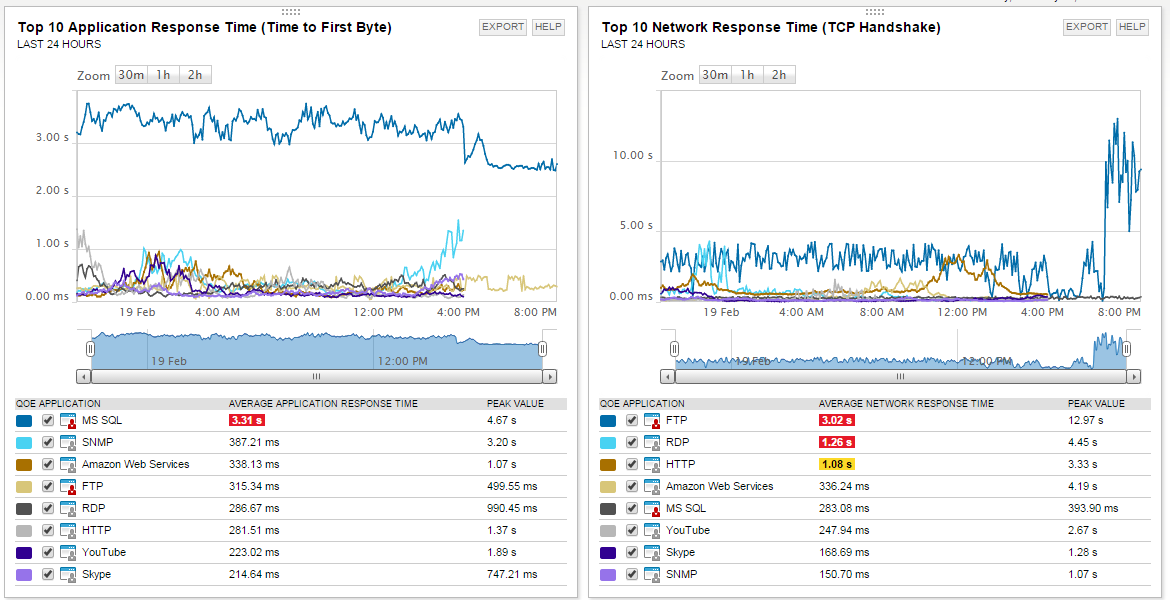

SolarWinds QoE

Now there is definitely some thought that needs to go into the setup of this feature SolarWinds has a few articles discussing it here:

Configure QoE & a QoE dashboard

QoE Knowledge base articles

Remember one of the biggest factors of Network monitoring is the perspective in which you are monitoring the network! take into account where you deploy these QoE sensors and how you interpret the statistics!

3. LEM – SolarWinds also did a presentation of their Log & Event Viewer, which I found very useful. I’ve known about this product for a while, however I was not quite sure how it goes up against a typical syslog collection. As it turns out the SolarWinds LEM product is in a league of it’s own touting to be a full SIEM product. One thing that makes LEM a little unique is the fact it is a completely separate & isolated product not tied into any other SolarWinds product.

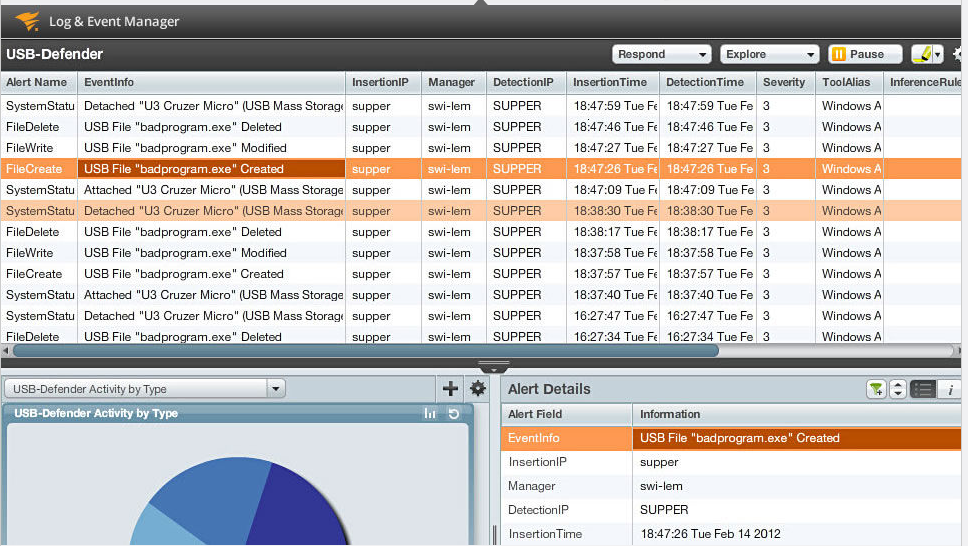

SolarWinds LEM

The Networking Field Day 9 SolarWinds presentations can be found here:

What’s new in NPM 11.5

Log & Event Viewer Technical Overview

Network Troubleshooting Discussion

Path Analysis Discussion

Also, I want to throw it out there. SolarWinds has a Demo Website where you can click around and explore many of their different modules. I highly recommend looking around if there is a modules you are curious about. Found here:

Written by Stephen J. Occhiogrosso

February 20, 2015 at 9:00 AM

Networking Field Day – Afterwards – NetBeez & Wireless Monitoring

with one comment


Well, Networking Field Day 9 has ended, it was a very quick, fun and informative three days.

I have to start by giving NetBeez a lot of respect for the great presentation, and I that same I almost want to apologize for the suggestions and feedback that we (All the delegates) bombarded them with during their presentation. They were certainly taking notes of our suggestions and even questioned our suggestions.

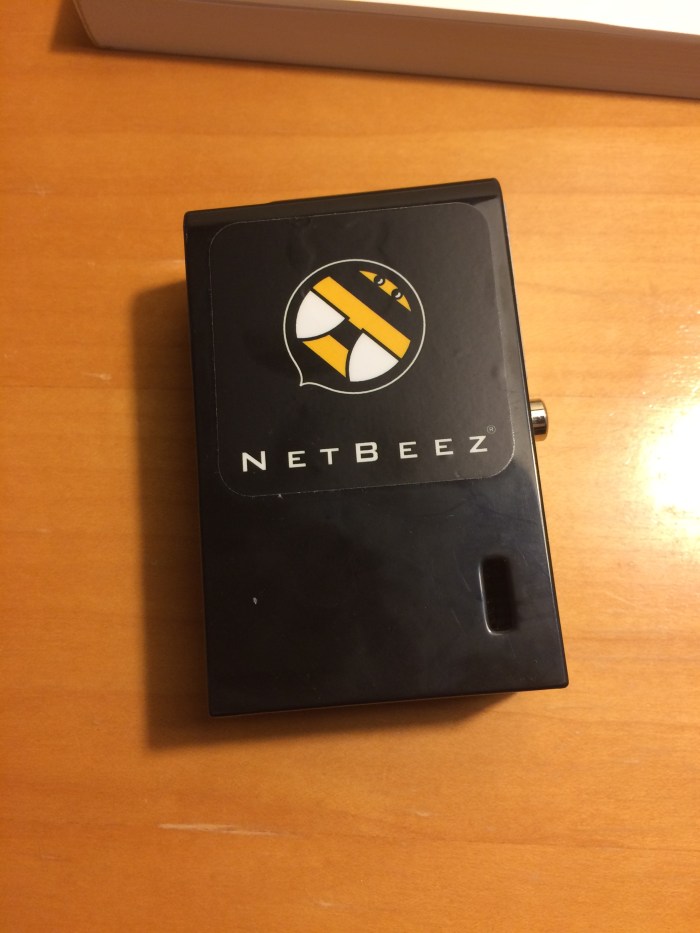

Now, NetBeez’s big announcement during this event was the availability of a ‘Wireless’ NetBeez. (If you are not familiar with NetBeez in general I recommend swinging back around to my previous post about their product). Which in my own opinion is a great addition their product. Having your own client node monitoring various key points of the network recording WLAN statistics provides a whole new level of WLAN monitoring that we do not currently have from the client level (or something I have not seen next).

  1. When we start talking about monitoring WLAN’s I see a lot of untapped potential to spearhead into many different industries:
    • Manufacturing
    • Distribution
    • Warehouse / Inventory

These industries usually consider their WLAN’s and their accompanying WLAN Applications to be mission critical, and without these key elements the entire operation can shut down costing large amounts of money. So I can easily see NetBeez pushing into these industries. One thing I want to see is a more rugged-ized model since these environments don’t tend to be very inviting.

Being able to track both application & WLAN level statistics from different locations of the wireless network can identify issues before they happen either at the access point or from an upstream distribution switch. Which to me offers a great value add to anyone who must manage large distributed WLAN’s. This little device provides some much needed visibility across the entire network path incorporating but Wired and Wireless statistics.

I am looking forward to kicking the tires on this NetBeez product and I am looking forward to any new features that gets rolled into their products.


If you missed the live presentation, you can view the recordings here:

Introduction to NetBeez

The nuts and bolts of NetBeez

NetBeez Live Demo

Written by Stephen J. Occhiogrosso

February 17, 2015 at 9:54 PM

Networking Field Day 9 First look: Generation-SDN -Part 1

leave a comment »

If there is one topic prevalent at Networking Field Day #9 it is SDN, well okay maybe this is one of the most prevalent topics in the networking industry right now. Among many the presenters at Networking Field Day #9 quite a few of them bring some flavor of SDN or SDN-WAN’s to the table.

A few of the presenters:


  • Cumulus Networks – A Linux based SDN-powered data center we definitely have a great foundation here. While looking around Cumulus’ website I really do like the sheer amount of information available on their website.
    • Validated Design Guides – Pretty extensive design guides covering guidelines for implementing Cumulus network devices with VMWare, OpenStack, & Big Data (Which are definitely worth reading)
    • Looks like they recently released a new version v2.5, and they have presentation available here. Definitely some good information in there.
    • Probably the most important option (in my option), is the ability to ‘test drive’ this solution. You can request access to their remote lab to get a better look and feel for the Cumulus Solution.
    • Considering this a *nux Distro, some of the backend process are common in the industry. Namely Zebra & Quagga for instance. It’s been a while since I’ve worked these, so whether we consider SDN a brand new technology or a shiny new tool to configure your network. Deep down it still utilizes the same backend methods you and I are familiar with.


  • CloudGenix – An SDN-WAN Solution, this is an interesting twist of the SDN perspective because up until now when I heard the term SDN I usually associate it within the Data Center.
    • A few noticeables, you can request beta access here, and stay up to date with CloudGenix’s progress.
      • I really like how companies are embracing this openness.
    • To me this sounds like it could be a very useful & popular take on the SDN-perspective, there are many companies out there with 100’s of remote sites that could definitely benefit from the SDN model. Keeping policies in sync across that many locations is always a tough business challenge and drastically affects the troubleshooting process, so I can’t wait to see CloudGenix’s approach and how they can aid in this issue.
    • Using the SDN with the WAN in my opinion may also present a different set of challenges.
      • Where as you typically have a stable and reliable underlay within your data center, the enterprise WAN may or may not have that same level of reliability & stability in the WAN underlay. Does that introduce any new issues to the SDN model, and if so how does CloudGenix approach those new challenges?


Both of these companies should be presenting unique and interesting presentations, after all SDN certainly has a lot of buzz in the networking industry and now we are looking at different flavors of SDN. These different flavors of SDN could really affect the future of network implementations. Now a small part of me is wondering, can I get an SDN-Integration application to make sure my SDN-WAN and SDN-Data Center mingle in harmony? Cause we all know sometimes what is good for the goose is not always good for the gander.

Written by Stephen J. Occhiogrosso

February 4, 2015 at 9:57 PM
