Packet Flow with FirePower.

leave a comment »

As I was going through some CiscoLive365 sessions (Remember CiscoLive365 is great!) just this last weekend I came across the slides for BRKSEC-2028 – Deploying Next Generation Firewall with ASA & Firepower services. Unfortunately there is no video for this session yet but the presentation slides are there and luckily the slides are detailed enough so you can easily follow along with the content. One the slides that stood out of to me was where the new FirePower modules (Hardware or Software) falls into the order of operations as traffic passes through the ASA. Screenshot below:

SourceFire Packet Flow

I think the big call-outs here are:

  1. The FirePower module will not actually drop the traffic itself, the traffic gets ‘marked’ if the traffic is to be dropped. All the traffic that passes to the FirePower module will indeed get passed right back to the ASA and it is the responsibility of the Cisco ASA to actually drop the traffic.
  2. Even existing connections still get inspected if the security policy demands.
  3. ACL’s and XLate entries will filter traffic before the traffic even makes it to the FirePower module.
  4. This is only slightly different from how the existing IPS Module inspects traffic from ASA. In regards to the flow path.

Definitely some good information to know when building out your new policies.

Written by Stephen J. Occhiogrosso

December 10, 2014 at 9:00 AM

Wireshark tid-bit: Quickly gathering the contents of a PCAP.

with one comment

I don’t know about you but when I find myself performing packet captures and analyzing PCAPs I usually only know the symptoms of the issue I am attempting to troubleshoot. IE: Connection timeouts, slow response, long transfer times, etc. I usually don’t know much more than that, only in rare occasions do I get a heads up and insight into the behaviors of the application I am trying to troubleshoot. For all the other situations I need to rely on the PCAPs and interpret what and how the applications are communicating. Whether or not the application is behaving properly and performance is as it should be or if there is indeed something amiss somewhere.

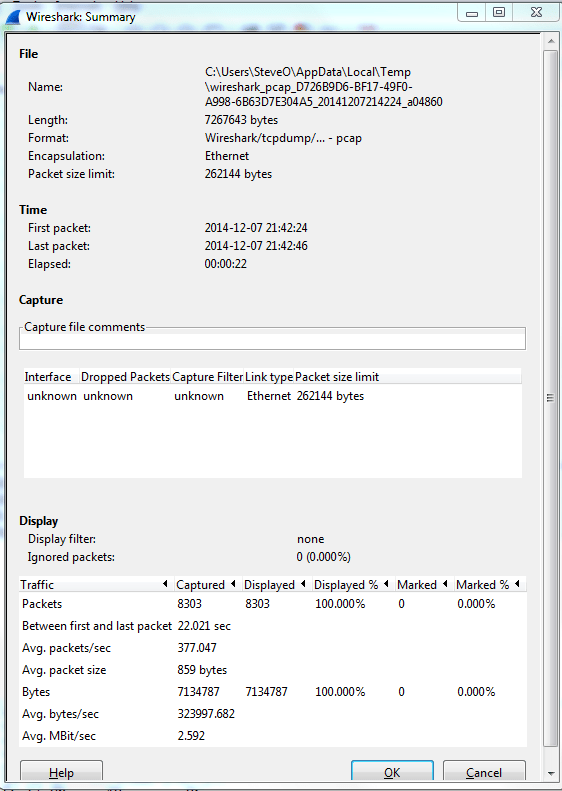

Now for me the easiest way to do this is by using the reviewing the ‘Summary’ page under the ‘Statistics’ menu. A sample summary page is below:


A few great call-outs from this screen:

  • Packet Size Limit -Knowing whether or not the packets within the capture were sliced after the first so many bytes is important to know, as sometimes you might not see the entire TCP header or wireshark will start classifying the packets as malformed. Although you will also see a ‘Truncated’ message within the packet indicating the packet was sliced.
  • First Packet, Last Packet, & Elapsed time -Matching up the time of a packet capture with when the particular issue occurred is crucial, after all you don’t want to find yourself analyzing the wrong capture. The Elapsed time is important to make note of as this give you the ability to establish a baseline, knowing how long a process takes can you help you identify an issue or identify expected behavior in the future.
  • Avg. Packet Size – Depending on what you are trying to troubleshoot the average packet size can be a quick indicator in regards to whether or not your fully using the MTU an your network. If you are troubleshooting data transfers normally you would expect the Avg. Packet to be quite large. If you see exceptionally small packet sizes data transfers may take a lengthy amount of time due to the increase TCP overload and normal L3 forwarding. Same goes for the Avg Mbit/sec, if you have large packets flowing you can expect to see a higher throughput rate, and the opposite for lower packet size rate.

The next spot that is worth checking out is the ‘Conversations’ which is also found under ‘Statistics’ this quaint little window gives you a brief overview of any Source/Destination devices identified within the capture. From an L2 Ethernet perspective up to a L4 TCP/UDP Perspective allowing you see what end points are really involved with this communication along with how much data was sent, the length of time the connection, etc. It’s not completely unheard of for applications to communicate with other devices (Web Servers, DB Servers, File Servers, Other App Servers) to perform whatever tasks it is trying to perform and it could be very possible this third server may or may not be slowing down the process.

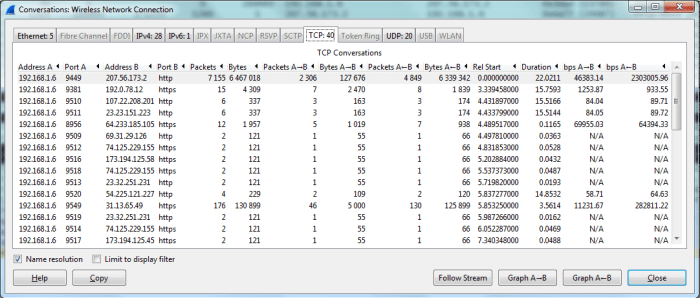

Wireshark Conversation

So by using these two windows in Wireshark you’ve identified the following:

  1. The length of time the process take. – Found in the elapsed time of the capture, as long as the entire process was captured that is.
  2. The endpoints involved with this communication. – Remember it is important to cut down as much background noise as possible.
  3. How much data is transferred and at what size & rate. – This can very helpful when working data transfers.

Written by Stephen J. Occhiogrosso

December 8, 2014 at 9:00 AM

Wireshark Tid-bit: What does the IP Identification field tell us?

with one comment

There are many different fields in the various headers we get to examine during packet analysis, one of the most overlooked field is the IP Identification field. This simple 16-bit field is displayed in Hex and has a few different uses, most importantly:

  1. Identifies fragmented packets.
  2. Identifies the individual packets that the sender transmits.

How does this help us?

  • Well, by reviewing the IP Identification numbers you can easily identify which packet was dropped in the conversation, by comparing the packet captures from two different capture points.
  • This field can also give us a glimpse at how busy the end-devices are. The IP Identification field will increase by ‘1’ for every packet from the sender. Remember the IP ID Value is specific to each individual and not to a specific conversation. If you are following a specific conversation we may see consecutive IP ID #’s or we could see large jumps in the IP ID # intervals. Depending on the numbers this could tell us if the end-devices could be overloaded, or under-utilized and depending on the situation that could point us to a smoking gun.
  • If the packets get fragmented they will have the same IP ID number, the Fragment Offset field will also be set as well. This is helpful in following a conversation over particular link changes.
  • Seeing the same IP ID #’s in the same packet capture could also identify switching or routing loops within our network. The IP ID #’s will always increase, seeing the duplicate numbers means were are seeing the same packet more than once. The first thing you want to do is verify your capture point is functioning properly and make sure your capture point is in the right spot. Once you verified that it’s time to go hunting for the loop.

Quick Example:

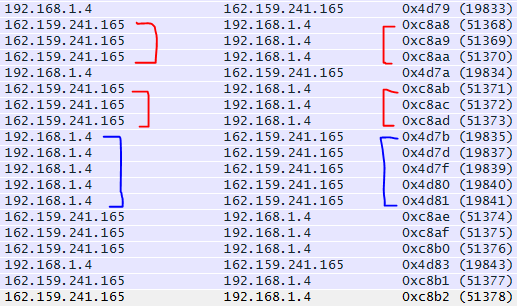

IP Ident-2

By reviewing the IP ID numbers of the packets what can we tell about this conversation with

  • All the IP ID #’s are unique, no routing/switching loops
  • The IP ID #’s are pretty consecutive on both sides of the conversation. Showing both endpoints are not being highly utilized at this point in time. In fact there are one or two gaps on the side of the conversation showing that endpoint is a little busier than

Written by Stephen J. Occhiogrosso

December 2, 2014 at 9:00 AM
